Flashing LEDs with a 555 timer – and not a lot else

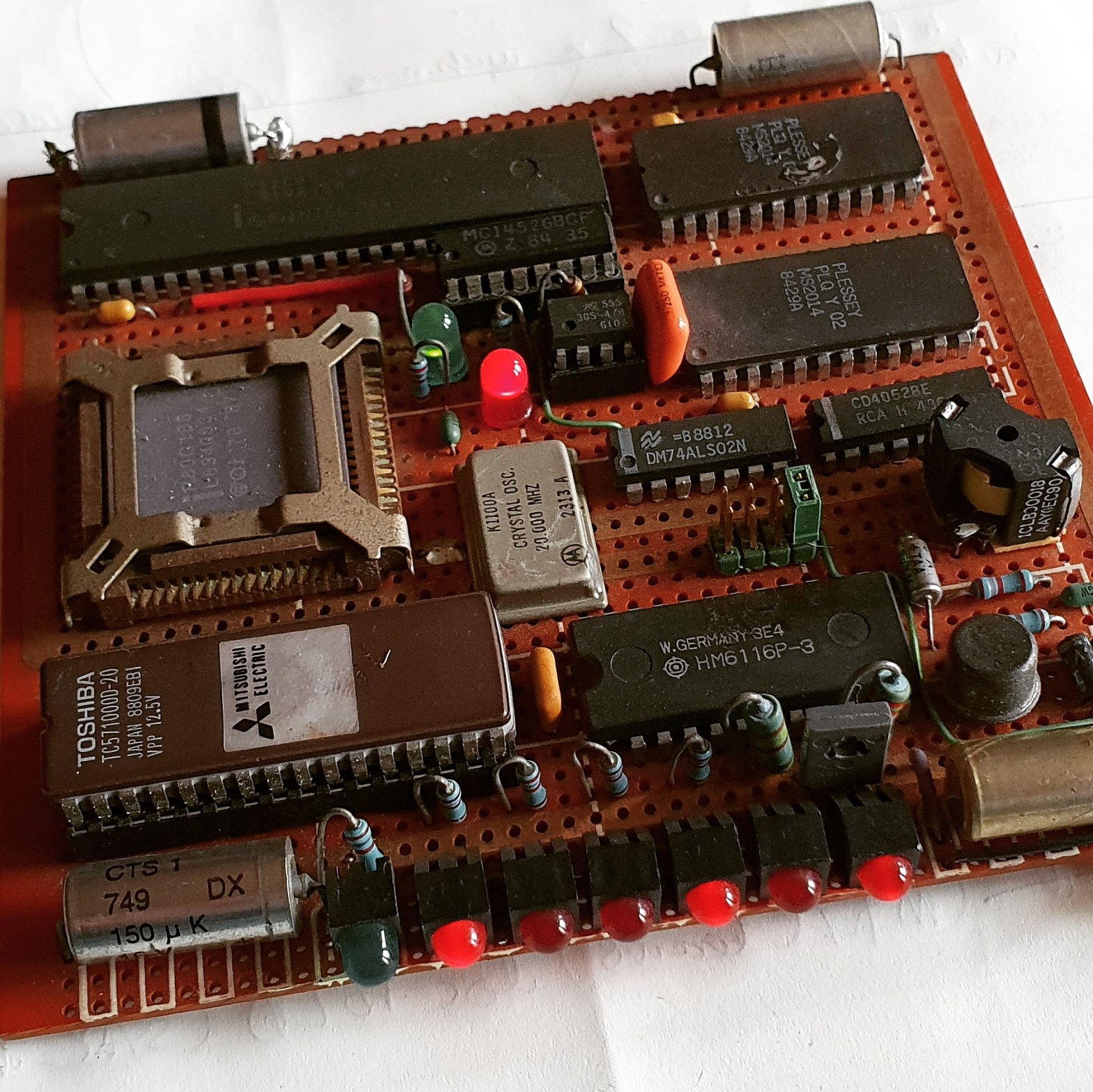

Just dug this out of storage – some electronics I made in the late 80s/early 90s. Most of it is old/scrap components – only the 555 and the MC14526 counter/divider actually do anything – flashing the LEDs long the edge. I can remember making it at work during quiet times as a side project, I had no idea why or what it might be good for šŸ™‚

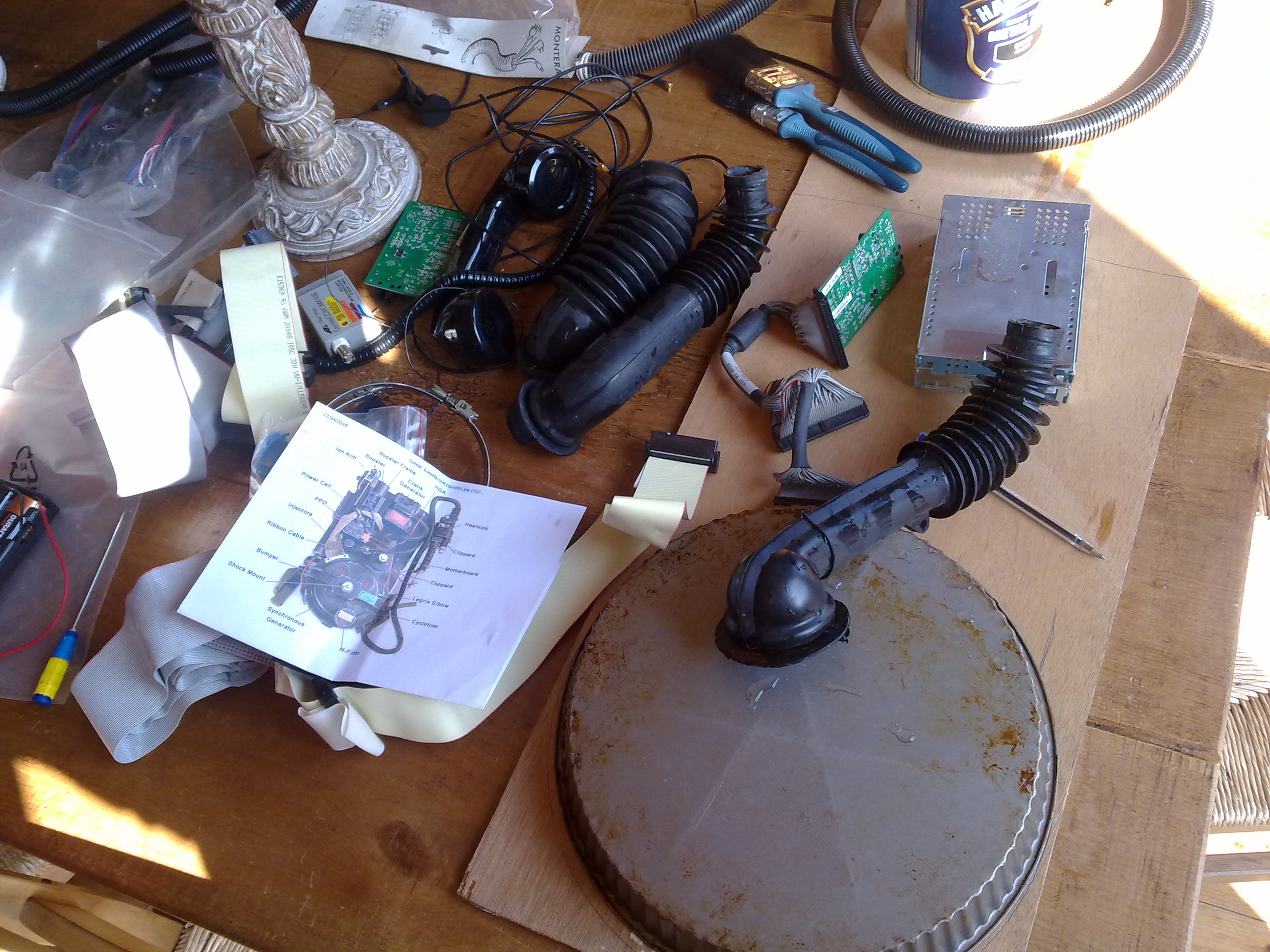

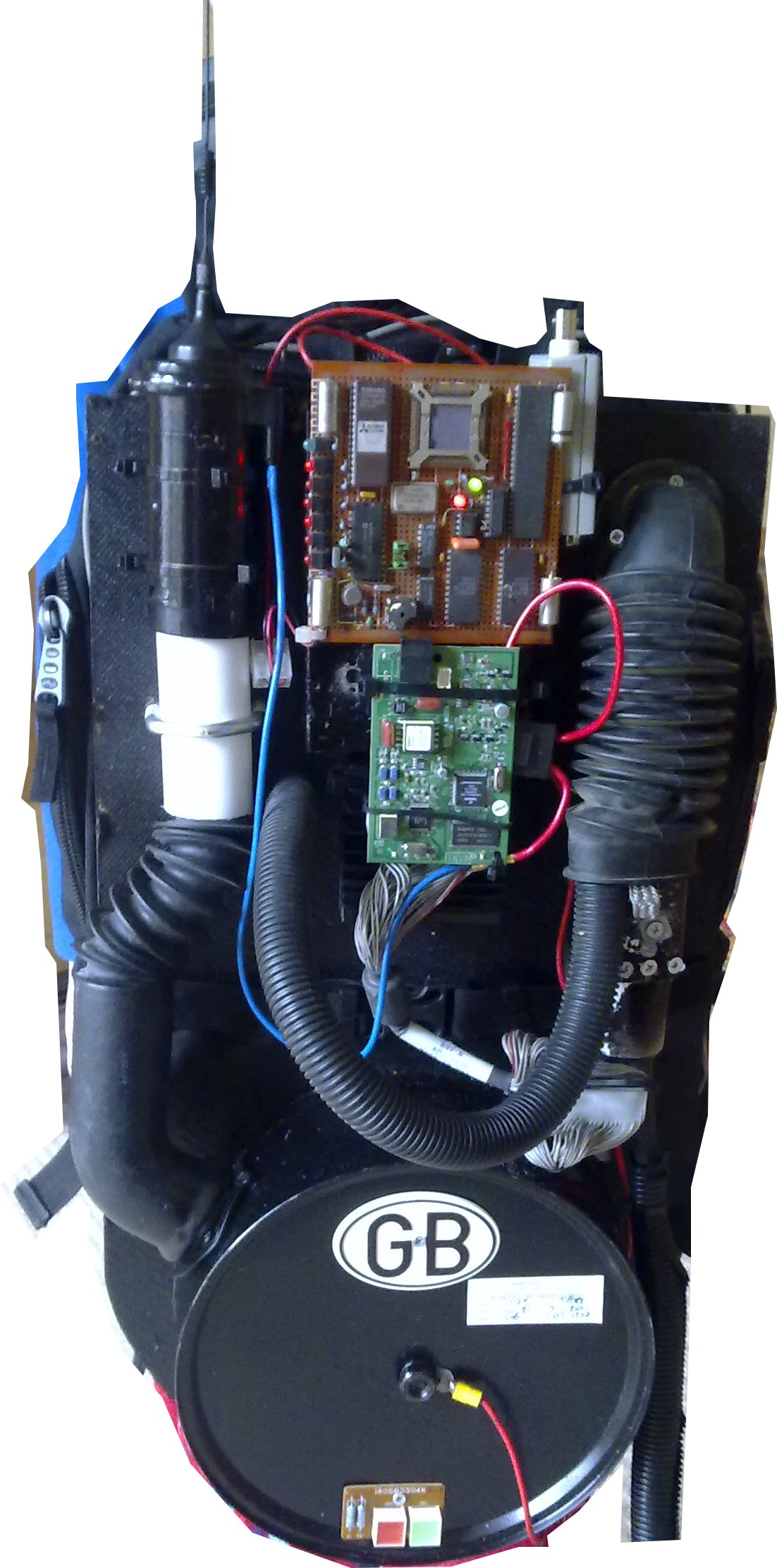

Some years later this found use on a Ghostbusters proton pack I made (cobbled together in a few hours on the day of the do!) for a Hollywood themed charity fancy dress bash…

Published by zedstarr

Chilled out human being, doing techy stuff.
