So the title really should be a bit longer: “QR codes on a laptop from 1989 with 256k RAM and no native graphics support” – but that doesn’t sound quite so snappy 😉

The laptop in question is my Psion MC400 – a marvel of engineering and industrial design, conceived in the mid-1980s and cursed by not having “PC compatibility”. Even though it had a multi-tasking GUI-based OS, touch pad and SSDs and would run for 40+ hours on a pack of AA batteries it was overpriced, unloved and had little software available for it. But for me it was love a first sight.

So back to 2026, or 2021 more precisely, when I first got the old lump of technology “connected to the internet” with the help of an attached Pi (of course). I created software on the MC400 to interface with the Pi that allowed it to send tweets (when twitter wasn’t a cesspit), send emails and I had it syncing screenshots to Google drive and producing a bitly shortened link to the image.

I recently read on some online forum somewhere some other retro-computer nerds talking about using QR codes as a way to retrieve info from old machines that weren’t easily networked and it got me thinking…

An old Psion MC400 laptop displaying a QR code on its screen, with a beige keyboard in the foreground.

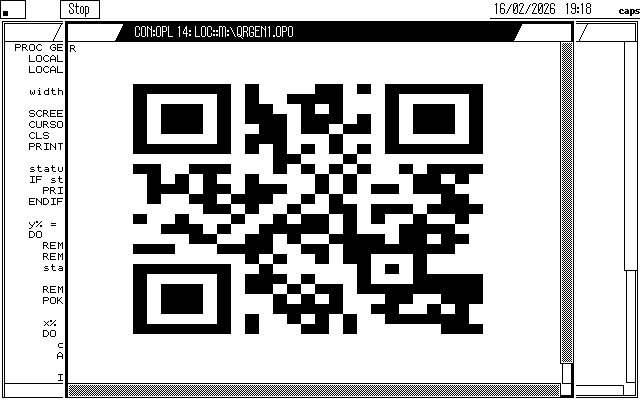

A QR code displayed on a vintage computer interface, with code and menu options visible on the screen.

So, disclaimer: the MC400’s 7MHz 8086 CPU doesn’t have the muscle (not without some serious assembler genius) to generate the code (Reed-Solomon error correction and masking) so the actual QR code generation is done by standard python libraries on the Pi (of course, again) – it creates the code from the last bitly link to a screenshot, draws the matrix using the Psion’s “block character” (CHR$(219) or 0xDB) and whitespace and writes the matrix to a file as a single stream. This file is then copied to the MC which uses its built-in OPL to open the file, read the stream 1 row at a time and print to screen. Turned out not bad at all.

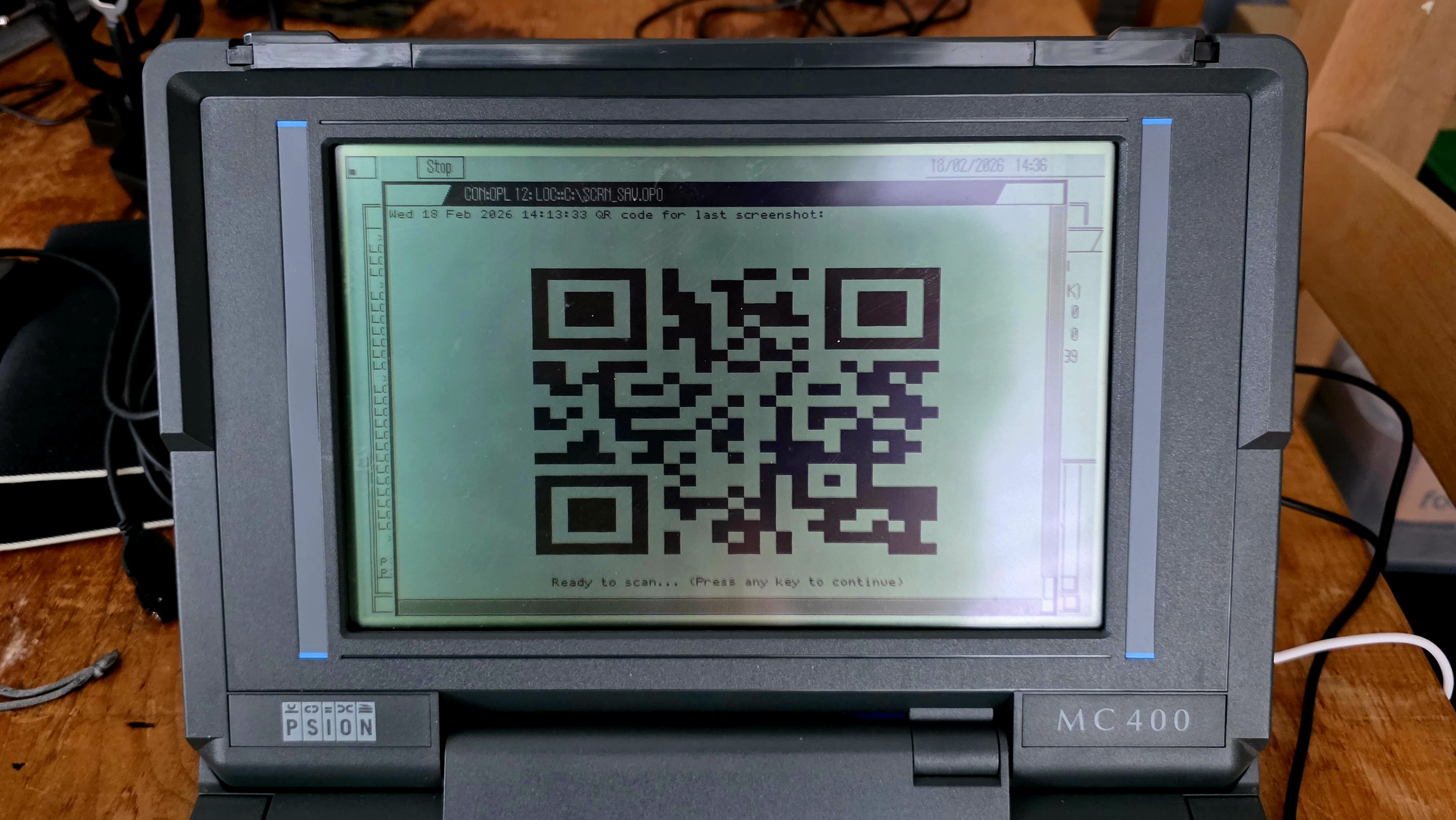

A close-up of a Psion MC400 device displaying a QR code on its screen, with text indicating it's ready to scan.

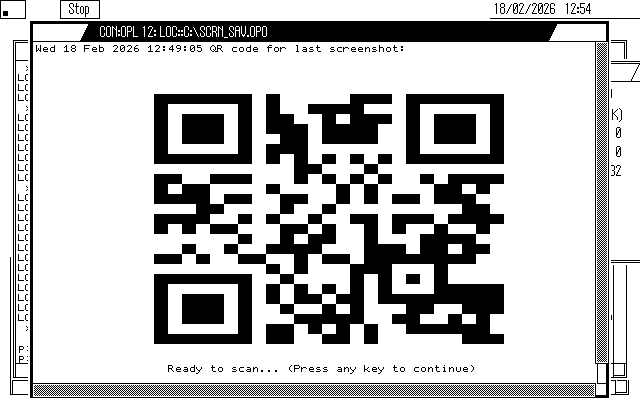

A computer screen displaying a QR code, with a timestamp indicating February 18, 2026, and a prompt to scan the code.

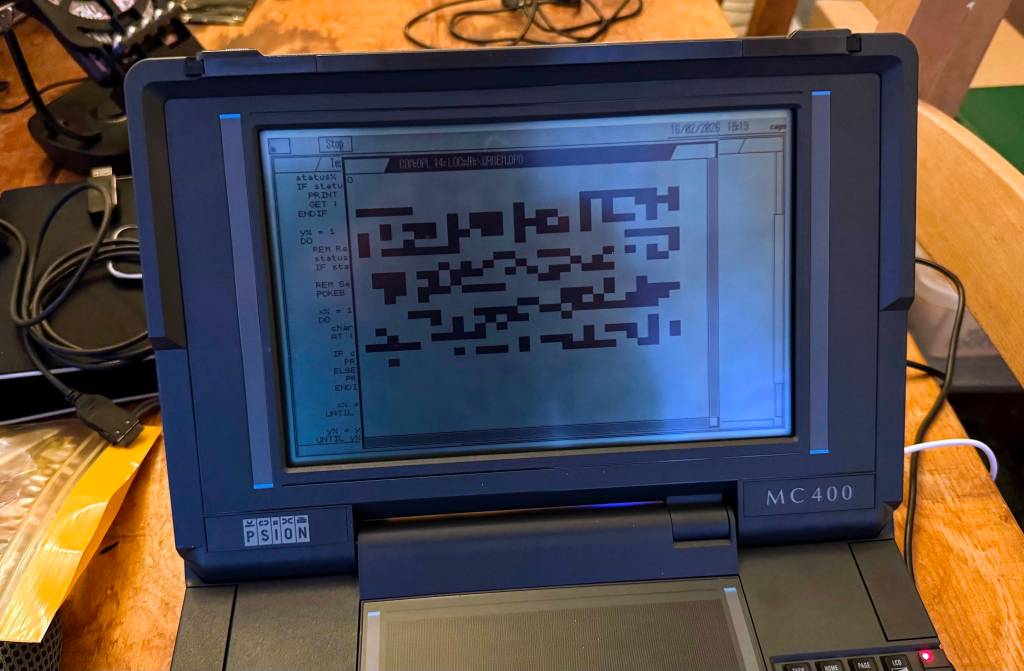

A close-up of a Psion MC400 handheld computer displaying a code editing screen with a blocky text layout.

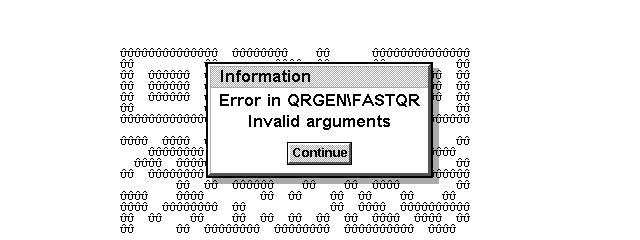

Some early attempts… row sync error!

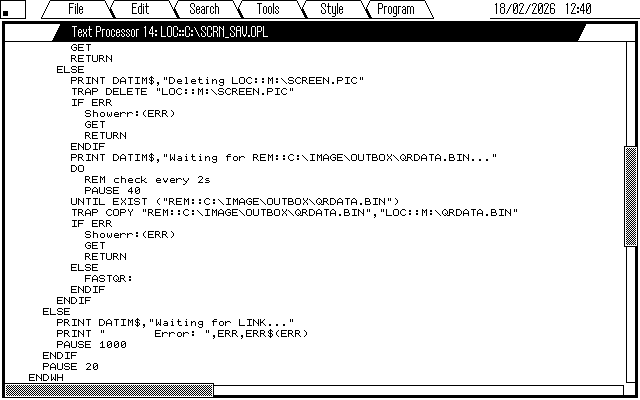

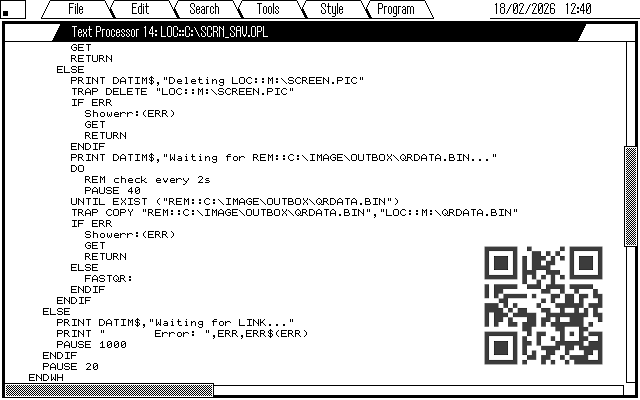

OPL snippet…

In all its glory – below is the OPL on the MC that detects a screenshot has been created (Ctrl-Psion-Shift-S on the Psion) then copies it to the Pi for conversion to PNG, syncing to Gdrive, then waits for QRDATA.BIN to be generated and opens/prints the QR data/code 😉

REM
REM Move any LOC::M:\SCREEN.PIC screen dumps
REM to an attached computer for processing
REM
REM v0.0.01 21/09/2021 @zedstarr
REM v0.0.02 18/02/2026 ADDED QR-CODE GEN
REM
PROC Main:
  local l%

  SCREEN 80,35

  WHILE 1
    PRINT DATIM$,"Auto conversion to PNG & cloud sync of screenshots"
    PRINT DATIM$,"Waiting for LOC::M:\SCREEN.PIC..."
    DO
      REM check every 10s
      PAUSE 200
    UNTIL EXIST("LOC::M:\SCREEN.PIC")
    PRINT DATIM$,"Found LOC::M:\SCREEN.PIC"
    REM Wait until dumping is truly finished
    PAUSE 100
    REM If link not connected the re-check every minute
    ONERR borked::
    l%=EXIST("REM::C:\MCLINK.EXE")
    borked::
    ONERR OFF
    IF l%
      PRINT DATIM$,"Copying to REM::C:\IMAGE\INBOX\SCREEN.PIC"
      TRAP COPY "LOC::M:\SCREEN.PIC","REM::C:\IMAGE\INBOX\SCREEN.PIC"
      IF ERR
        Showerr:(ERR)
        GET
        RETURN
      ELSE
        PRINT DATIM$,"Deleting LOC::M:\SCREEN.PIC"
        TRAP DELETE "LOC::M:\SCREEN.PIC"
        IF ERR
          Showerr:(ERR)
          GET
          RETURN
        ENDIF
        PRINT DATIM$,"Waiting for REM::C:\IMAGE\OUTBOX\QRDATA.BIN..."
        DO
          REM check every 2s
          PAUSE 40
        UNTIL EXIST ("REM::C:\IMAGE\OUTBOX\QRDATA.BIN")
        TRAP COPY "REM::C:\IMAGE\OUTBOX\QRDATA.BIN","LOC::M:\QRDATA.BIN"
        IF ERR
          Showerr:(ERR)
          GET
          RETURN
        ELSE
        	FASTQR:
        ENDIF
      ENDIF
    ELSE
      PRINT DATIM$,"Waiting for LINK..."
      PRINT "       Error: ",ERR,ERR$(ERR)
      PAUSE 1000
    ENDIF
    PAUSE 20
  ENDWH
ENDP
PROC Showerr:(val%)
  PRINT "Error: ",val%,err$(val%)
  GET
ENDP
PROC FASTQR:
  LOCAL h%, status%, line$(70), y%
  LOCAL width%

  REM 33 modules * 2 characters per module = 66
  width% = 66

  CURSOR OFF
  CLS
  status% = IOOPEN(h%, "LOC::M:\QRDATA.BIN", 0)
  IF status% < 0 : PRINT "File Error" : GET : RETURN : ENDIF
  PRINT DATIM$,"QR code for last screenshot:"
  y% = 1
  DO
    REM Read the pre-formatted line (66 bytes)
    status% = IOREAD(h%, ADDR(line$) + 1, width%)
    IF status% < width% : BREAK : ENDIF

    REM Set the string length byte for OPL
    POKEB ADDR(line$), width%

    REM Move to row and print the whole string at once
    AT 10, y%+1
    PRINT line$;

    y% = y% + 1
  UNTIL y% > 29
  REM Yes, that's 4 lines too short but it's whitespace/border anyway...

  IOCLOSE(h%)
  AT 20, 33 : PRINT "Ready to scan... (Press any key to continue)";
  GET
  CLS
ENDP
